OS&Y Gate Valve

An OS&Y gate valve helps control fluid flow in pipelines. “OS&Y” means the stem and yoke are outside the valve. This design makes it easy to see if it’s open or closed by checking the stem. The main job of this valve is to stop flow reliably, keeping systems working well.

You’ll see OS&Y gate valves in fire systems, pipelines, and water networks. They are strong and last a long time, even in tough conditions. Installing them correctly ensures they work well, especially in sprinklers and fire safety setups. When choosing one, make sure its design fits your system for the best performance.

Key Takeaways

• An OS&Y gate valve controls liquid flow and shows if it’s open or closed using its outside stem design.
• Strong materials like cast iron and bronze stop it from rusting and make it good for high-pressure and hot systems.
• The rising stem design lets you see its position easily, which is helpful for fire safety and emergencies.
• OS&Y gate valves can be used in fire systems, industrial pipes, water supplies, and oil and gas work.
• Its straight design allows lots of flow with little pressure loss, making systems work better.
• Checking the stem and tightening parts regularly keeps the valve working longer and better.
• These valves are easier to fix and take care of than other types because of their outside stem.
• Picking the right OS&Y gate valve for your system, pressure, and material needs helps it work safely and well.

What is an OS&Y Gate Valve?

Definition and Meaning

An OS&Y gate valve helps control fluid flow in pipelines. The term “OS&Y” means “Outside Stem and Yoke,” describing its design. Unlike other valves, the stem and yoke are outside the valve body. This setup lets you easily see if the valve is open or closed by checking the stem’s position.

You’ll often see OS&Y gate valves in fire sprinklers, industrial pipelines, and water systems. They are great for stopping flow tightly, which is important for precise control. The OS&Y design also improves safety by showing the valve’s status clearly.

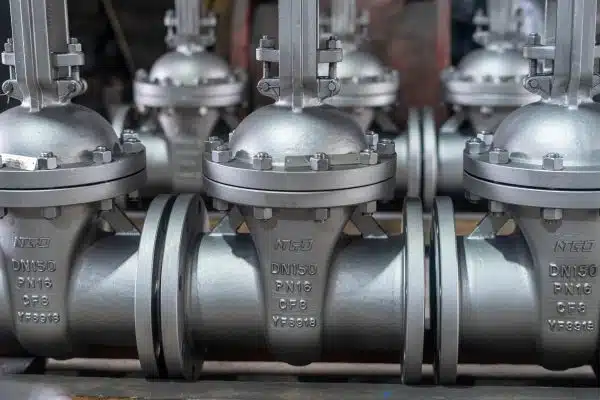

Key Components of an OS&Y Gate Valve

An OS&Y gate valve has several parts that make it work well. Here’s a simple list of its main components:

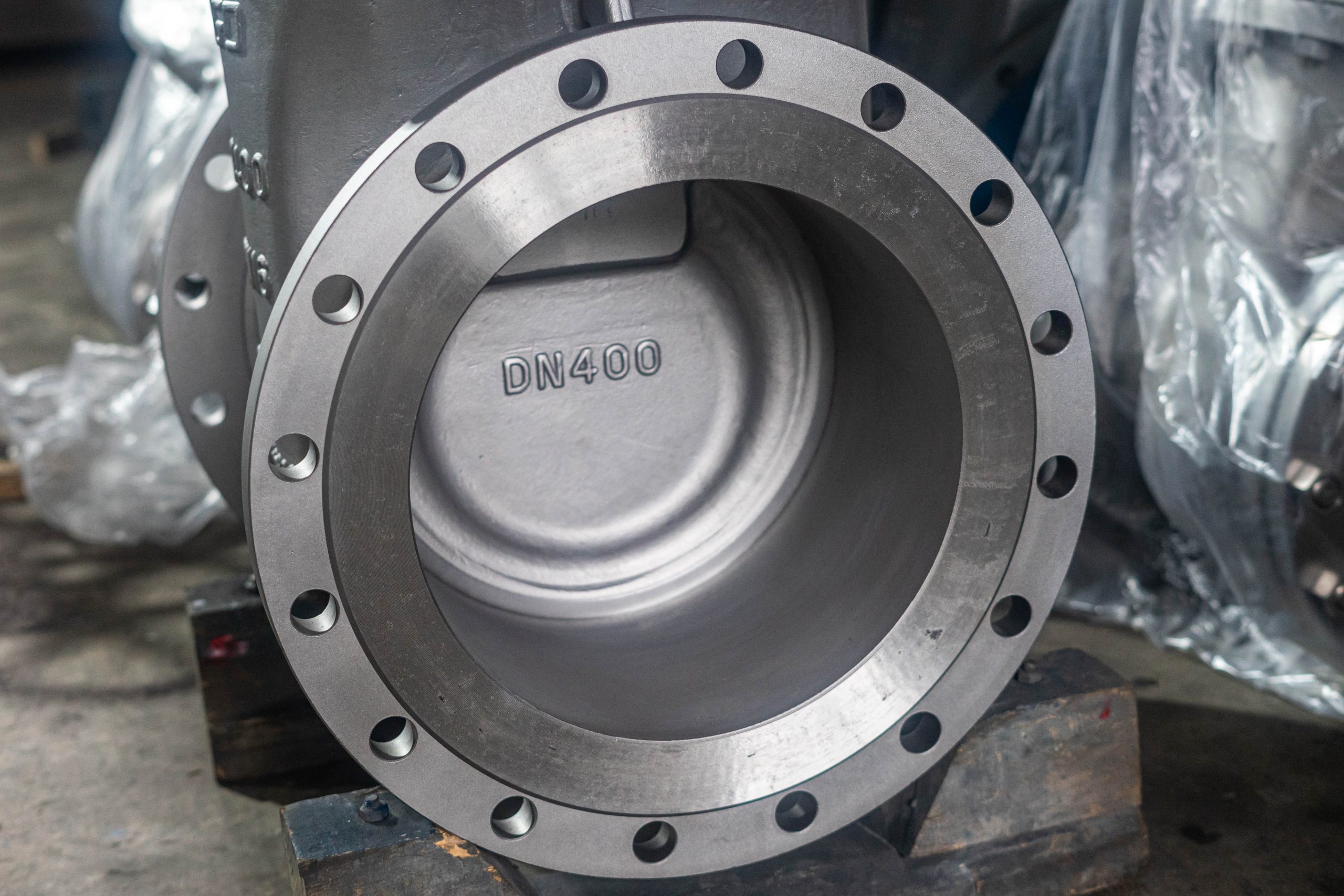

• Valve Body: The outer part that holds everything and connects to pipes.
• Gate: A flat or wedge-shaped piece that moves to block or allow flow.
• Stem: A rod that moves the gate up or down when used.
• Yoke: A frame that keeps the stem steady during use.
• Handwheel: A wheel or lever you turn to open or close the valve.
• Packing Gland: A seal that stops leaks around the stem.

These parts work together to allow smooth, two-way flow with little pressure loss. For example, the 3″ Ken Rw Gate Valve Grooved OS&Y is made for emergencies, giving exact water flow control when needed.

Why is it Called “Outside Stem and Yoke”?

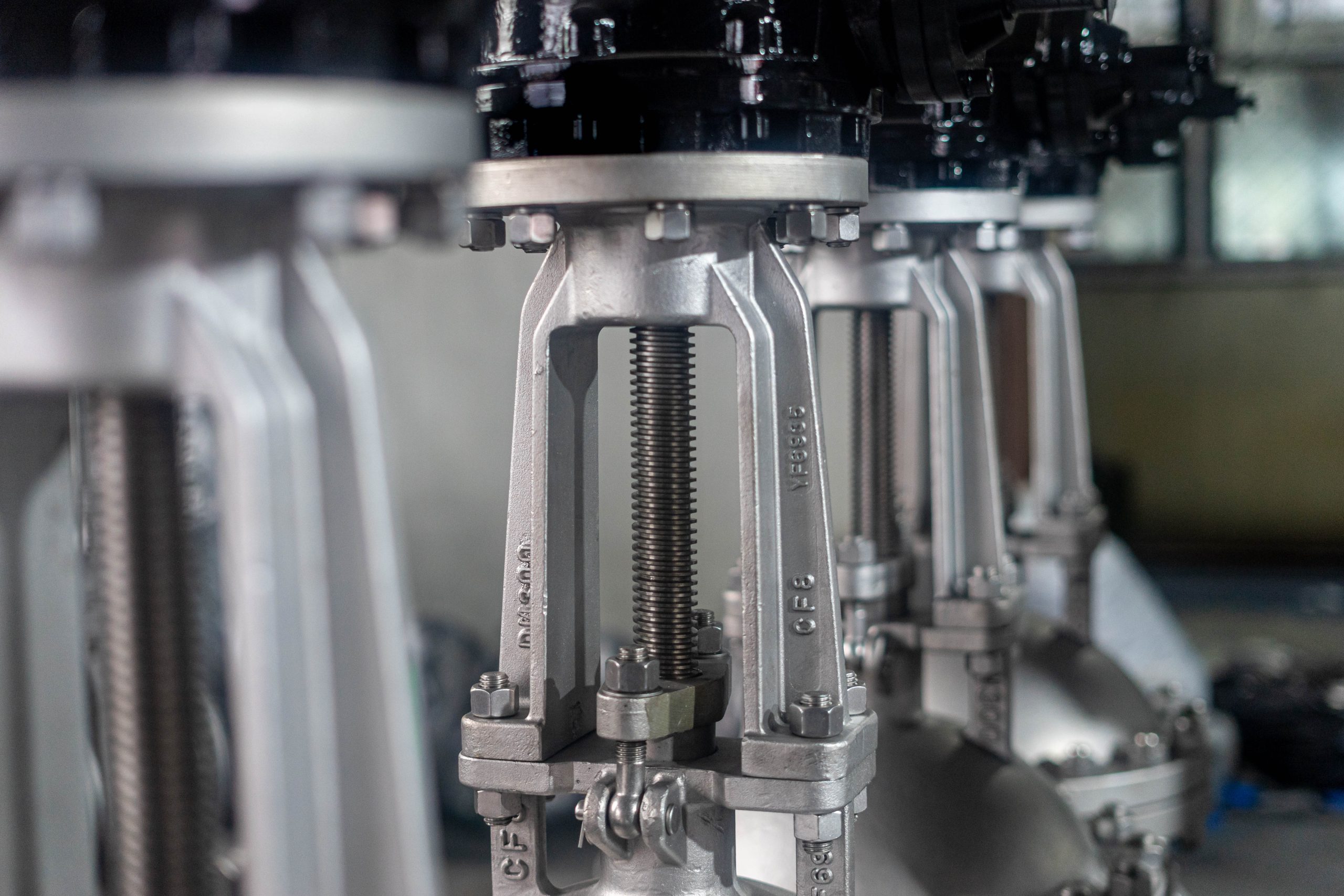

The name “Outside Stem and Yoke” comes from its special design. The stem, which moves the gate, is outside the valve body. This makes it easy to see if the valve is open or closed. If the stem sticks out, the valve is open. If it’s pulled in, the valve is closed.

The yoke holds the stem steady and keeps it aligned while working. This design makes the valve stronger and easier to maintain. Many OS&Y gate valves also have a tamper switch to check the valve’s position. This is very useful in fire systems where knowing the valve’s status is critical for safety.

The OS&Y design is flexible and comes in different sizes and materials. It works well in water systems, oil and gas pipelines, chemical plants, and HVAC setups.

How Does an OS&Y Gate Valve Work?

How It Works

An OS&Y gate valve controls fluid by moving a gate. Turning the handwheel moves the stem up or down. When the gate lifts, fluid flows through. When the gate lowers, it stops the flow. This simple design makes it reliable for precise control.

The stem threads are outside the valve, reducing rust risks. This setup also makes fixing the valve easier. The yoke holds the stem steady and absorbs pressure during use. These parts work together to keep the valve running smoothly.

Here’s a quick look at the main features:

Feature	What It Does
Outside Screw	Keeps stem threads outside, preventing rust and easing repairs.
Yoke	Holds the stem steady and handles pressure shocks.

How the OS&Y Design Works

The OS&Y design places the stem outside the valve body. This lets you quickly check if the valve is open or closed. If the stem sticks out, the valve is open. If it’s pulled in, the valve is closed.

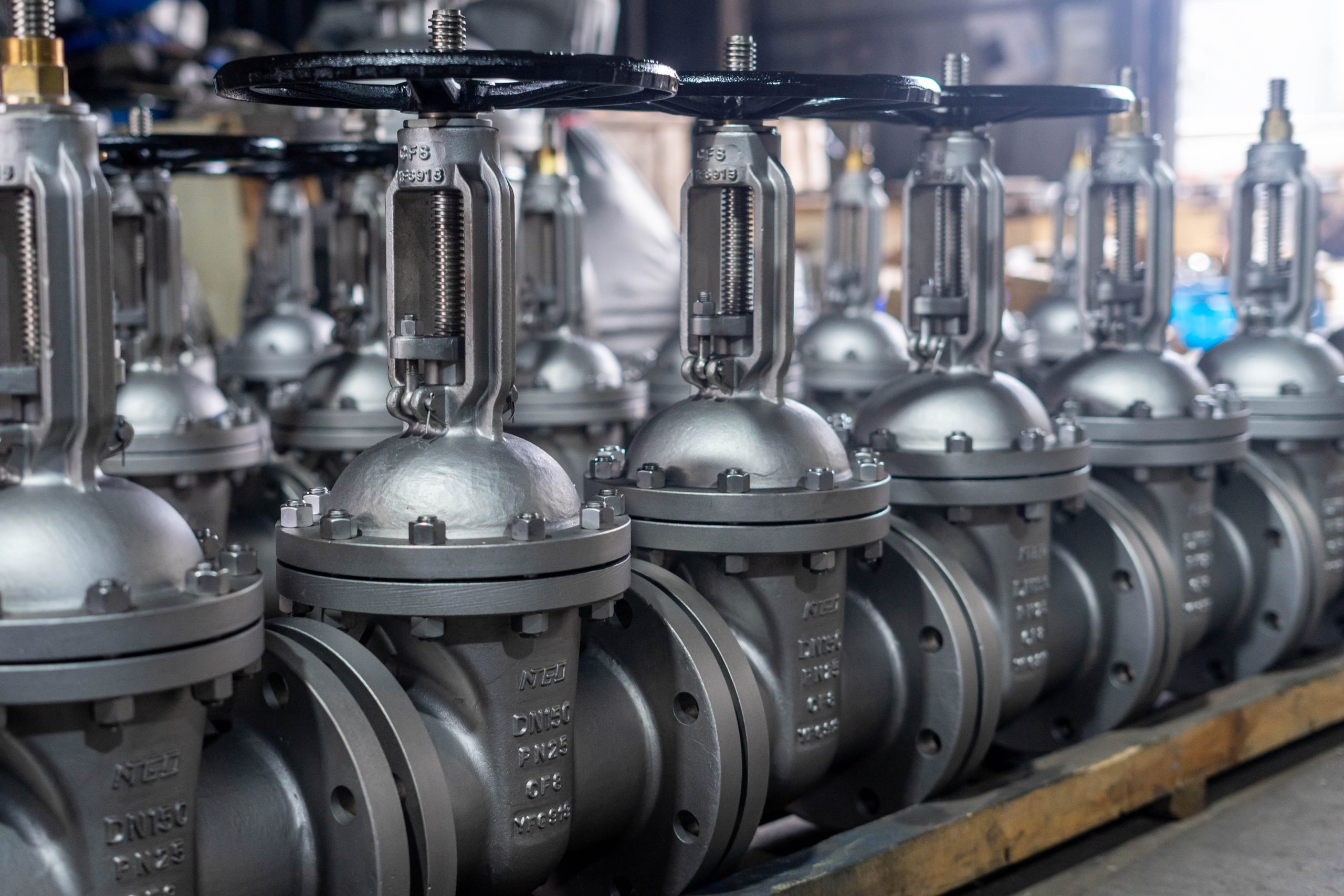

The handwheel is key to this design. Turning it moves the stem up or down. This movement controls the gate and shows the valve’s status.

Key features of the OS&Y design include:

• The exposed stem, which makes checking and fixing easier.
• A handwheel that moves vertically for simple operation.
• A design that lets you quickly see if the valve is open or closed.

This design is especially helpful in fire systems. Knowing the valve’s status is critical during emergencies.

Benefits of the OS&Y Design

The OS&Y design has many advantages over other valves. Its external stem improves safety and makes repairs easier. You can quickly check for damage and fix problems on time. The rising stem also shows the valve’s position clearly, helping systems run better.

Here’s a breakdown of the benefits:

Benefit	What It Means
Better Safety	The rising stem shows the valve’s position, useful in emergencies.
Easy Repairs	The external stem lets you spot damage and fix it quickly.
Clear Control	The outside screw shows the valve’s position clearly.
Long-Lasting	Made from strong materials like stainless steel, it resists rust and lasts a long time.

These features make OS&Y valves a great choice for stopping fluid flow. They work well in fire systems and industrial pipelines, giving reliable performance every time.



Key Features and Benefits of OS&Y Gate Valves

Durability and Longevity

Choosing an OS&Y gate valve means picking a long-lasting product. These valves are made with strong cast iron and bronze parts. This design helps them resist rust, even in tough conditions. They work well in systems with high pressure or heat. For example, they handle temperatures from 14°F to 390°F and pressures up to 200# WOG (Water, Oil, Gas).

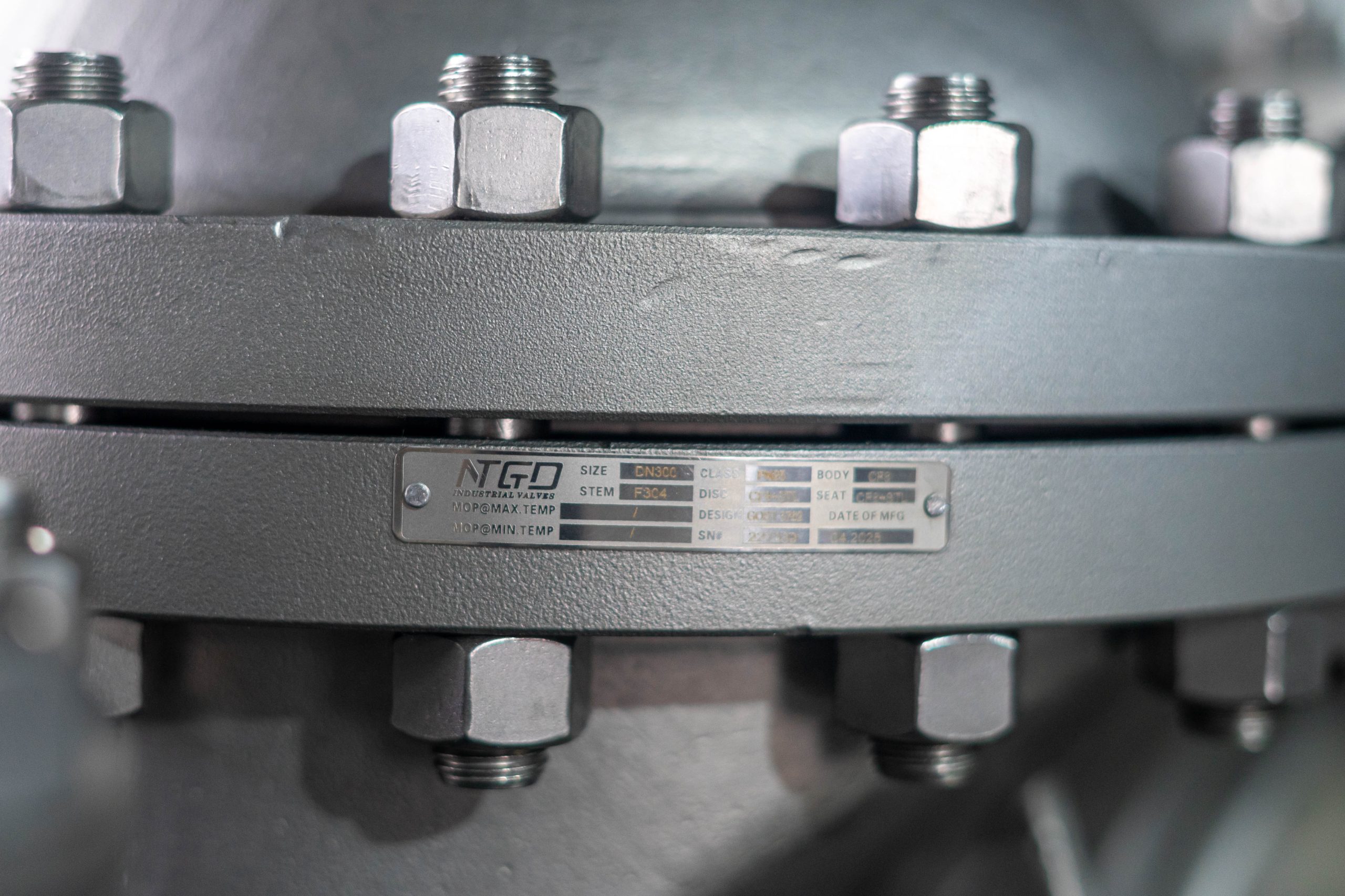

The rising stem design reduces wear on the inside parts. This, along with a sturdy disc, ensures no leaks in stressful systems. NTGD, a trusted maker of OS&Y valves, follows strict rules like MSS-SP-70 for quality and durability.

Feature	Description
Strong Build	Cast iron body with bronze parts to resist rust.
Handles High Pressure	Rated for 125# WSP and 200# WOG for many uses.
Leak-Proof Design	Solid disc ensures no leaks in tough systems.
Wide Temperature Range	Works from 14°F to 390°F in different settings.

This tough design makes OS&Y valves great for industries like oil, water treatment, and mining.

Easy Visual Inspection of Valve Position

A key feature of OS&Y valves is their clear position indicator. The stem, outside the valve, moves up or down to show if it’s open or closed. This design removes any guessing, so you can check the valve’s status quickly.

The external stem also keeps the threads safe from fluids, stopping rust and making the valve last longer. This is especially helpful in fire systems, where knowing the valve’s position is crucial. Studies show this design makes inspections easier and improves reliability.

By choosing an OS&Y valve from NTGD, you get a product that’s simple to use. Its design makes checking and maintaining your system easy.

High Flow Capacity

OS&Y gate valves are great for high flow needs, ensuring smooth fluid control. Their straight-through design reduces pressure loss and turbulence. This allows fluids to flow freely, keeping systems efficient.

Unlike other valves, the solid disc in OS&Y valves handles large fluid amounts without losing performance. This makes them ideal for water systems, heating setups, and ocean projects. Whether for fire safety or pipelines, these valves ensure smooth flow control.

NTGD’s OS&Y valves meet ANSI B16.10 standards, fitting many pipe systems. Their high flow ability and reliable shut-off make them a flexible and effective choice for your needs.

Compatibility with Fire Protection Systems and Other Applications

The OS&Y gate valve is a key part of fire safety systems. Its special design controls water flow accurately, making it a trusted choice. This valve works well in emergencies, providing reliable performance when needed most.

Why OS&Y Gate Valves Are Ideal for Fire Protection Systems

The OS&Y gate valve has features that suit fire safety systems:

• Clear Position Indication: The rising stem shows if the valve is open or closed. This is important during emergencies when quick action is needed.
• Reliable Shut-Off: It seals tightly, stopping leaks when the system is off. This saves water and keeps the system efficient.
• Durability: Made from strong materials, it handles high pressure and heat. These conditions are common in fire safety setups.

Fire safety rules often require OS&Y gate valves in sprinkler systems. Their high flow ability ensures water reaches all areas during a fire.

Applications Beyond Fire Protection

Besides fire systems, OS&Y gate valves are useful in other areas:

• Industrial Pipelines: They control fluids in factories and chemical plants. Their strength and flow capacity suit tough jobs.
• Water Supply Systems: These valves are used in city water networks. They allow smooth flow and easy repairs when needed.
• Oil and Gas Industry: They manage oil and gas flow under high pressure and heat. This makes them dependable for this industry.

Tip: Pick a valve based on pressure, material, and system needs. This helps it work better and last longer.

Meeting Industry Standards

OS&Y gate valves meet strict rules like UL/FM for fire systems. These certifications prove the valve is safe and works well. Choosing certified valves ensures your system follows safety rules and works reliably.

Applications of OS&Y Gate Valves

Fire Protection Systems

OS&Y gate valves are very important in fire safety systems. They control water flow reliably, which is crucial during emergencies. The rising stem shows clearly if the valve is open or closed. This helps you act fast when every second counts. In sprinkler systems, this feature ensures water reaches all areas to stop fires effectively.

These valves seal tightly to prevent leaks, saving water and keeping the system efficient. Their strong build handles high pressure and heat, making them perfect for fire safety setups. When installed upright, they let debris and silt pass through, keeping them working smoothly even in tough conditions. These qualities make OS&Y gate valves a dependable choice for fire safety in offices, factories, and city facilities.

Tip: Check the valve’s position and condition often to ensure it works well during emergencies.

Industrial Pipelines

In factories and pipelines, OS&Y gate valves give precise control over fluid flow. Their tough design works well in high-pressure places like chemical plants and oil refineries. The straight flow path reduces turbulence and pressure loss, helping systems run efficiently.

The external stem makes maintenance easier. You can check and fix the valve without taking apart the pipeline. This saves time and keeps operations running smoothly. The valve’s strong build stops leaks, even in extreme conditions, ensuring safety and reliability.

Industrial systems need valves that handle different pressures and temperatures. OS&Y gate valves meet these needs, lasting long and working with many pipeline materials. Their flexibility makes them a key part of industrial setups.

Water Supply and Distribution

OS&Y gate valves are common in water supply systems because they are reliable and efficient. Their design shows clearly if the valve is open or closed, helping you control water flow easily. The multi-turn mechanism, with a rubber-coated metal gate, seals tightly to stop leaks.

These valves allow maximum water flow with little pressure loss, making them great for city water systems and large buildings. The grooved ends make installation and maintenance simple, saving time and effort. The durable ductile iron body ensures they last long, even in tough conditions.

Feature	Description
Material	Strong ductile iron for long-lasting use
Applications	Works in offices, factories, and city water systems
Design	Tight seal prevents leaks and reduces pressure drops
Valve Position Indication	OS&Y design shows if the valve is open or closed
Installation	Grooved ends make setup and maintenance easy

When installed upright, these valves let debris and silt pass through, keeping water flowing smoothly. Their ability to handle large water volumes makes them a trusted choice for water systems.

Note: Pick an OS&Y gate valve that meets safety rules for the best performance.

Oil and Gas Industry

In oil and gas work, accuracy and safety are key. OS&Y gate valves help control fluids under high pressure and heat. Their design places the stem outside the valve body. This makes it easy to see if the valve is open or closed. This feature keeps operations smooth and safe when time is critical.

The rising stem design is better than IS&Y (Inside Stem and Yoke) valves. The table below shows how they differ:

Feature	OS&Y Gate Valves	IS&Y Gate Valves
Stem Position	Rises outside the valve body, easy to see	Stays inside the valve body, hard to see
Valve Position Visibility	Clear to operators	Not clear to operators
Functionality	Moves the disc directly	Disc movement is hidden

Being able to see the valve’s position makes OS&Y valves ideal for oil and gas tasks. They give precise control over crude oil, gas, and other fluids. Made from strong materials like stainless steel, they last in tough conditions.

These valves also save time during repairs. The external stem design allows quick checks and fixes without removing the pipeline. This reduces downtime and costs, making them a smart choice for oil and gas systems.

Tip: Choose an OS&Y gate valve based on pressure, material, and temperature needs for best results.

Other Common Uses

Besides fire systems and pipelines, OS&Y gate valves are used in many areas. Their strong build and flexibility make them useful in different fields.

1. Marine and Offshore Applications
   These valves are used on ships to control water in ballast systems and firefighting. Their rust-resistant materials work well in salty, wet conditions.
2. Power Generation Plants
   Power plants use these valves to manage steam and water flow. They handle high heat and pressure, making them vital in nuclear and thermal plants.
3. HVAC Systems
   Heating and cooling systems use these valves to control water in boilers and cooling towers. Their durability helps systems run efficiently.
4. Mining Operations
   In mining, these valves manage water and slurry flow. Their tough design handles rough materials and harsh conditions.
5. Chemical Processing Plants
   Chemical plants need valves for extreme fluids and temperatures. OS&Y gate valves meet these needs, ensuring safe and smooth flow control.

The wide use of OS&Y valves shows their value in modern systems. Whether for water networks or chemical plants, they provide reliable performance.

Note: Regular checks and maintenance can help OS&Y gate valves last longer and work better in tough jobs.

Maintenance and Troubleshooting of OS&Y Gate Valves

Routine Inspection and Maintenance Tips

Taking care of your OS&Y gate valve helps it last longer. Regular checks can catch problems early. Follow these simple tips to keep your valve in good shape:

• Look at the stem to see if the valve is open or closed.
• Secure the valve to stop accidental movement. Use locks, chains, or tamper switches.
• Keep records of the valve’s condition. Note if it’s “Locked,” “Chained,” or in a “Secured Room.”

These steps make the valve safer and keep it working well. Always follow the maker’s guide when installing to avoid damage.

Tip: Check your valve every month to spot problems early and keep it reliable.

Common Issues and How to Address Them

Even with care, OS&Y gate valves can have problems. Knowing how to fix them saves time and money. Here are common issues and fixes:

1. Leaking Around the Stem:
   • Look for leaks near the stem. Tighten the packing gland to stop it.
2. Valve Won’t Fully Close:
   • Make sure the valve is fully shut. Clean out any dirt or buildup blocking it.
3. Stem is Damaged:
   • Check the stem for rust or wear. Replace it if needed to keep the valve working.
4. Handle is Stuck:
   • Clean the threads to remove dirt. Use oil to loosen them. If it’s still stuck, tap it gently or warm it with a hair dryer.

Before fixing a valve, turn off the main water supply. Remove the valve, open it, and check each part for damage.

Fixing problems quickly helps the valve last longer and work smoothly.

When to Replace an OS&Y Gate Valve

Sometimes, even with care, a valve needs replacing. Here’s when to get a new one:

• Leaks Keep Happening: If repairs don’t stop leaks, the valve might be too damaged.
• Rust Problems: Rust can weaken the valve, making it unsafe.
• Stem Worn Out: If the stem doesn’t move well or is very worn, replace the valve.
• Doesn’t Fit System Needs: If the valve no longer works for your system’s pressure or flow, upgrade to a better one.

Replacing the valve keeps your system safe and working well. Ask an expert to help you pick the right valve and install it correctly.

OS&Y Gate Valves vs. Other Valve Types

Comparison with Non-Rising Stem Gate Valves

Non-rising stem gate valves work differently than OS&Y valves. In non-rising stem valves, the stem stays still while the gate moves inside. This design makes them smaller, which is helpful in tight spaces. But it’s harder to see if the valve is open or closed because the stem doesn’t move outside.

OS&Y valves have an external stem that shows the valve’s position clearly. This is important in systems like fire safety, where quick checks matter. The external stem also makes maintenance easier. Non-rising stem valves often need disassembly for repairs, which takes more time and costs more.

If space isn’t an issue and visibility is important, OS&Y valves are a better choice. Their design makes them reliable and easy to use for many systems.

Comparison with Ball Valves

Ball valves and OS&Y gate valves both control flow but work differently. Ball valves use a rotating ball with a hole to manage flow. They open or close quickly, making them good for fast shut-offs.

OS&Y valves are better for precise flow control and clear position checks. Their multi-turn mechanism allows finer adjustments, unlike the quick turn of ball valves. The external stem in OS&Y valves shows the valve’s status, which ball valves don’t have.

OS&Y valves are also stronger in high-pressure and high-temperature systems. Ball valves may not handle extreme conditions as well. If your system needs durability and clear position checks, OS&Y valves are the better option.

Tip: Think about your system’s needs—like flow control, visibility, and conditions—before choosing a valve type.

When to Choose an OS&Y Gate Valve

Picking the right valve helps your system work better. OS&Y gate valves are great when you need clear position visibility, strong build, and exact shut-off. Below are situations where this valve works best:

1. Fire Protection Systems

Use OS&Y gate valves in fire safety setups. The rising stem shows if the valve is open or closed easily. This is very important during emergencies when fast action is needed. The valve’s tight shut-off saves water and keeps the system efficient.

Tip: Check the valve’s position often to ensure it’s ready for emergencies.

2. High-Pressure or High-Temperature Systems

For systems with extreme conditions, OS&Y gate valves are dependable. They handle high pressure and heat without losing performance. Examples include industrial pipelines, oil refineries, and chemical plants.

3. Systems Requiring Easy Maintenance

The external stem design makes maintenance simple. You can check and grease the stem without taking apart the valve. This saves time and keeps systems like water networks or HVAC setups running smoothly.

4. Applications Needing Precise Flow Control

If your system needs exact fluid control, OS&Y gate valves are ideal. Their multi-turn design allows small adjustments, unlike quick-turn valves like ball valves. They work well in places like water treatment plants and mining sites.

5. Systems with Corrosive or Dirty Fluids

The external stem stays safe from the fluid inside. This reduces wear and makes the valve last longer. It’s a smart choice for systems with dirty or corrosive fluids.

How to Make the Right Selection

To pick the best OS&Y gate valve, think about these points:

• System Needs: Know your system’s pressure, temperature, and flow requirements.
• Material Match: Choose a valve material that resists corrosion from your fluid.
• Setup Instructions: Follow the maker’s guide to install it correctly.

Note: Using the wrong valve can cause leaks or system problems. Ask an expert if you’re unsure.

By knowing your system’s needs and the advantages of OS&Y gate valves, you can choose wisely for lasting performance.

---

OS&Y gate valves help manage fluid flow in pipelines. Their special design lets you easily see if they’re open or closed. This makes them very useful in fire safety systems and factories. They are strong, handle large flows, and work well with sprinklers and other setups. These valves stay reliable even in tough conditions, keeping systems safe and efficient.

Picking an OS&Y gate valve means getting a long-lasting and dependable product. Whether for fire safety or factory pipelines, they are a trusted option for important systems.

FAQ

1. What does “OS&Y” mean in an OS&Y gate valve?

“OS&Y” stands for “Outside Stem and Yoke.” The stem is outside the valve body. This design helps you easily see if the valve is open or closed.

2. How do you know if an OS&Y gate valve is open or closed?

Look at the stem’s position. If the stem sticks out, the valve is open. If the stem is pulled in, the valve is closed. This makes inspections simple.

3. Why are OS&Y gate valves important in fire safety systems?

They show the valve’s position clearly and shut off reliably. The rising stem design lets you quickly check if the valve is open or closed. This is very important during emergencies.

4. How often should you check an OS&Y gate valve?

Check it once a month. Regular inspections help you find problems like leaks or damage early. This keeps the valve working well.

5. Can OS&Y gate valves handle high-pressure systems?

Yes, they can. These valves are built strong and seal tightly. This makes them great for systems with high pressure and heat.

6. What materials are used to make OS&Y gate valves?

They are made from materials like cast iron, bronze, or stainless steel. These materials resist rust and wear, making the valves last longer.

7. Are OS&Y gate valves easy to take care of?

Yes, they are. The external stem design makes maintenance simple. You can grease the stem without taking the valve apart, saving time and effort.

8. When should you replace an OS&Y gate valve?

Replace it if it keeps leaking, has heavy rust, or doesn’t fit your system’s needs anymore. Regular checks will help you know when it’s time for a new one.

Tip: Follow the maker’s instructions for setup and care to make the valve last longer.
